indoor bikes: SRX-85; code SRX-85

KEY POINTS
Belt drive with fixed sprocket. Felt brake pad system. Safety lever for quick flywheel locking. CNC-machined and balanced flywheel weighing 24 kg. Integrated wireless receiver and heart rate monitor included.

Check availability and prices through WEBSTORES and POINTS OF SALE authorized dealers!

The images and data presented in the catalog and on the website's product specifications may differ in some details from the original products

COMPARE

Technical specifications

Transmission

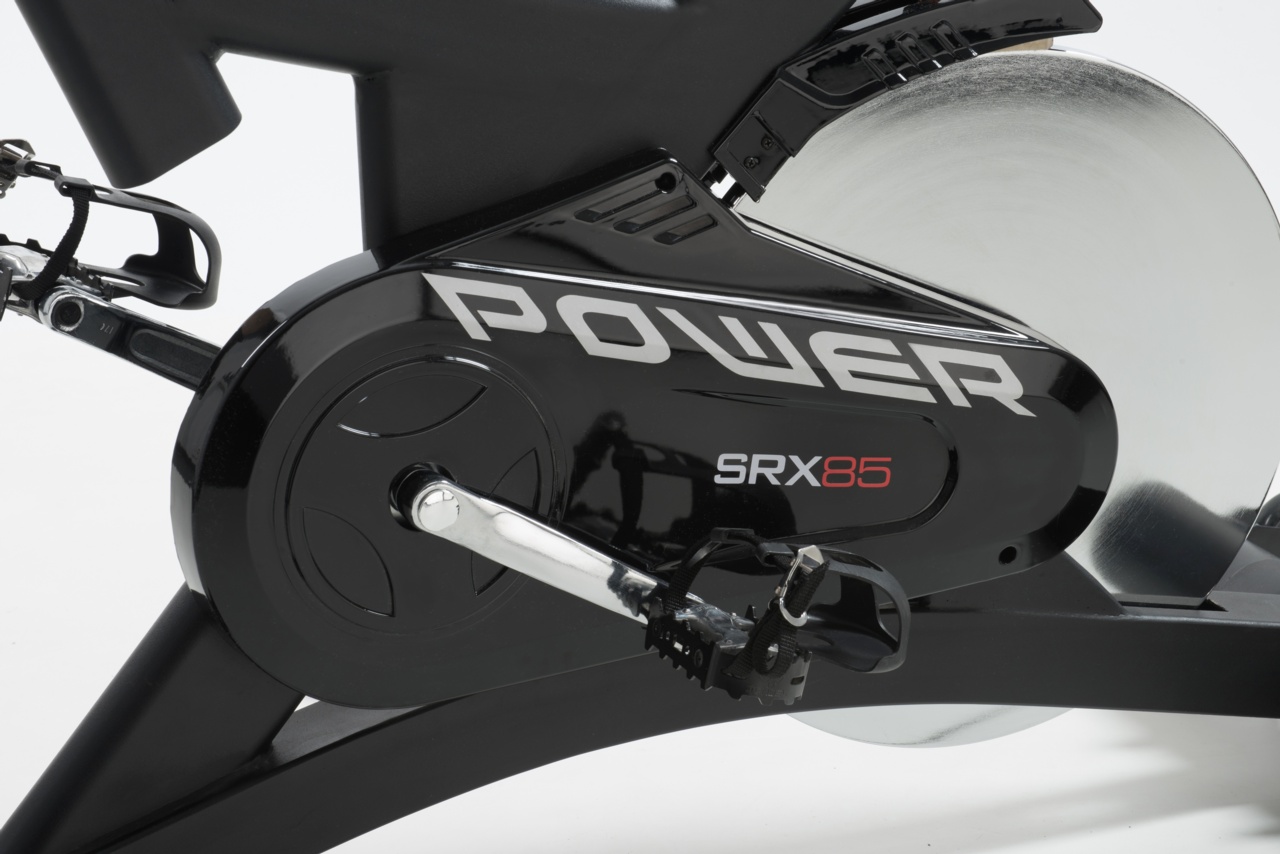

Transmission	belt drive with fixed pinion
Resistance braking system

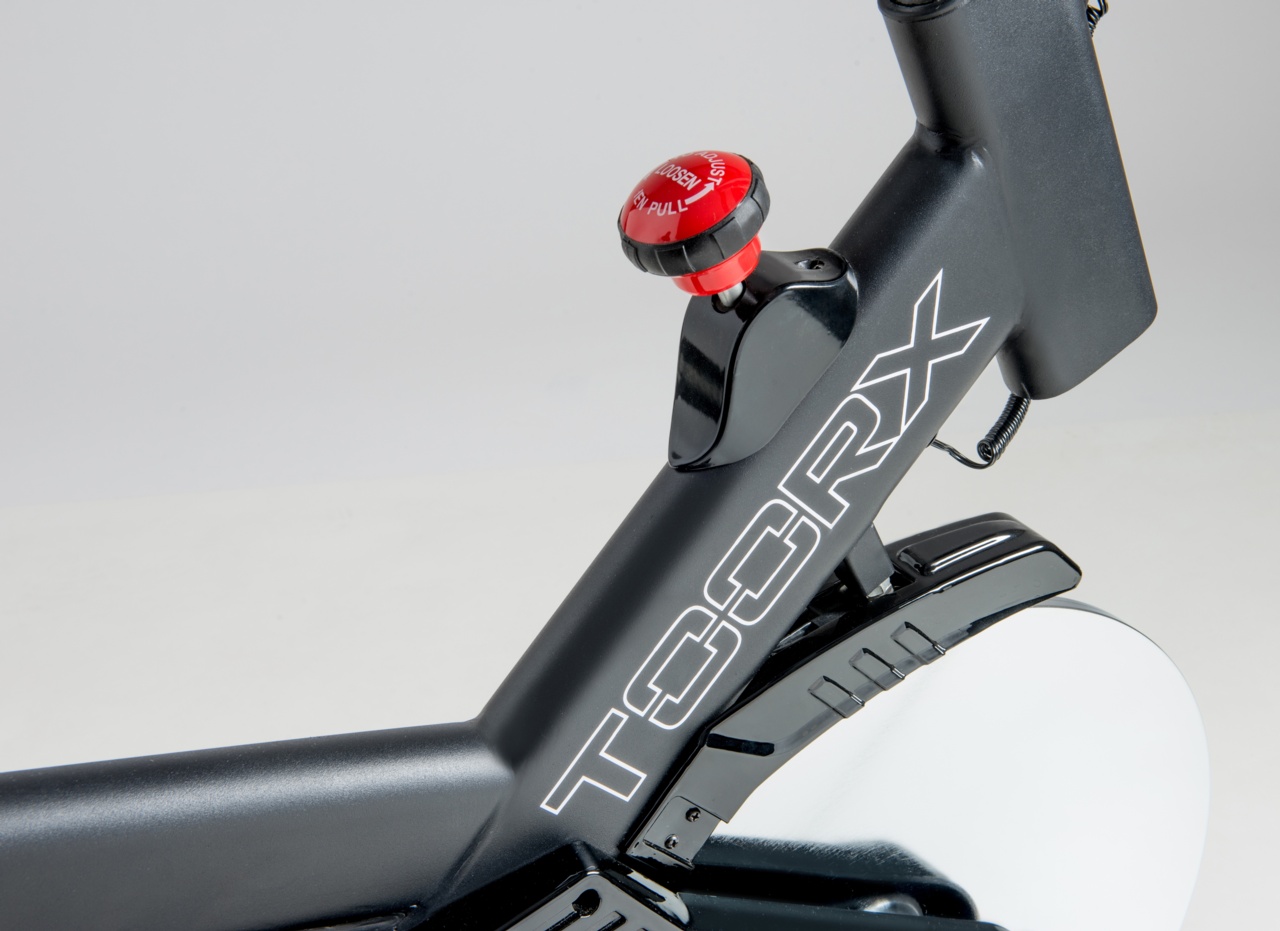

Resistance braking system	with felt pads. Equipped with a safety lever for quick locking of the flywheel.
Volcanic mass
Volcanic mass	24 kg weight, CNC machined and balanced
Maximum user weight
Maximum user weight	130 Kg
Computer with LCD

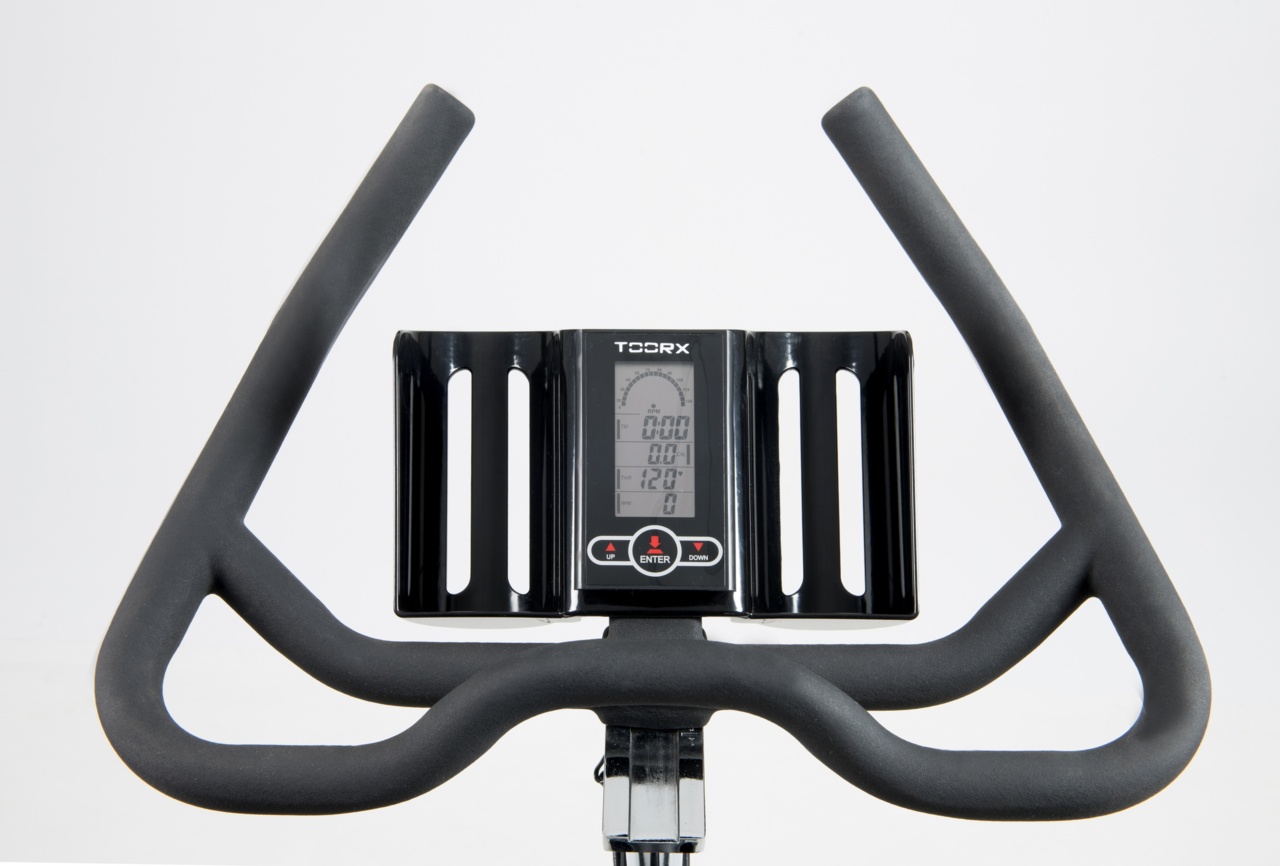

Computer with LCD	speed, time, heart rate, distance, calories, RPM
Saddle

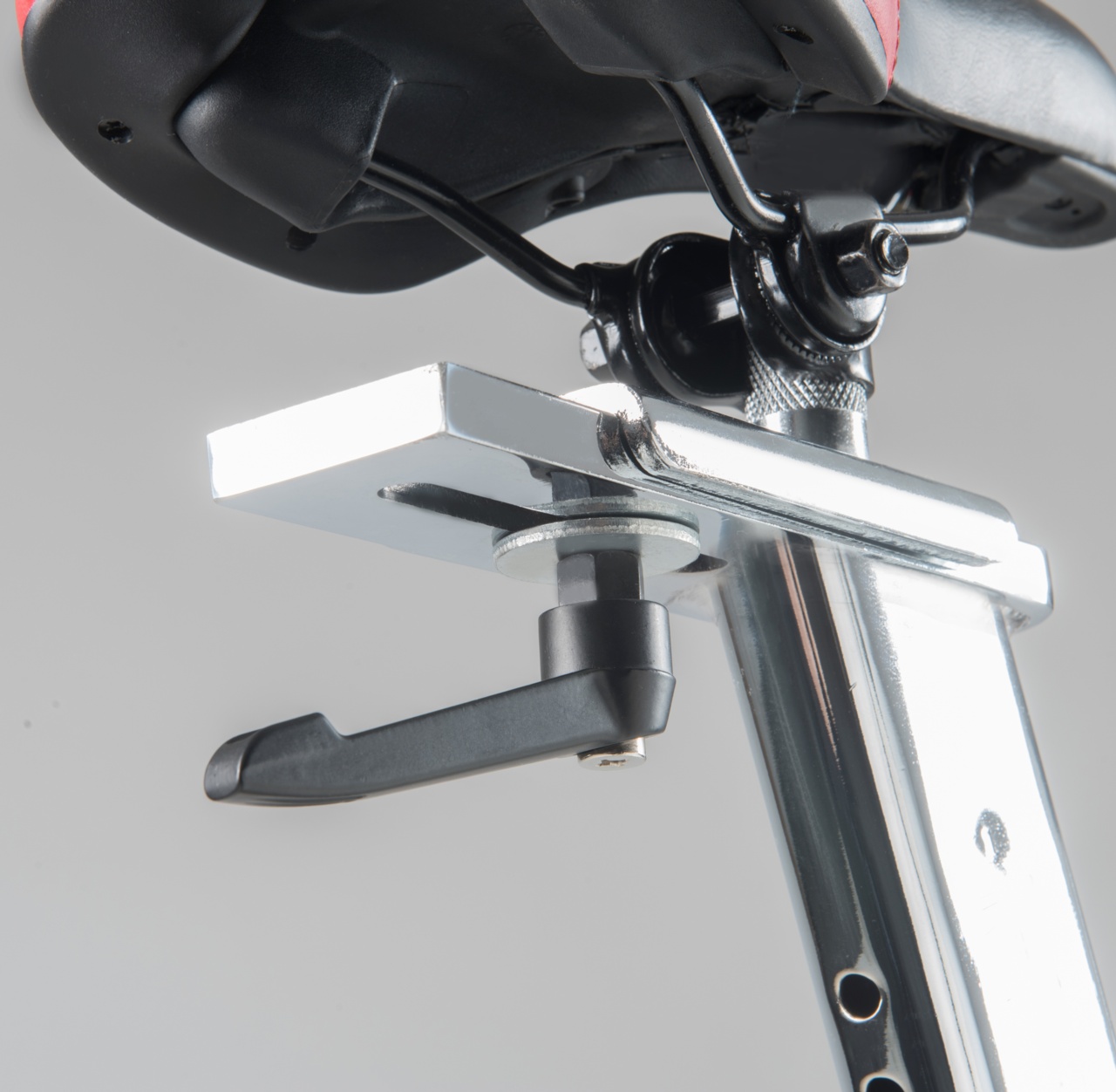

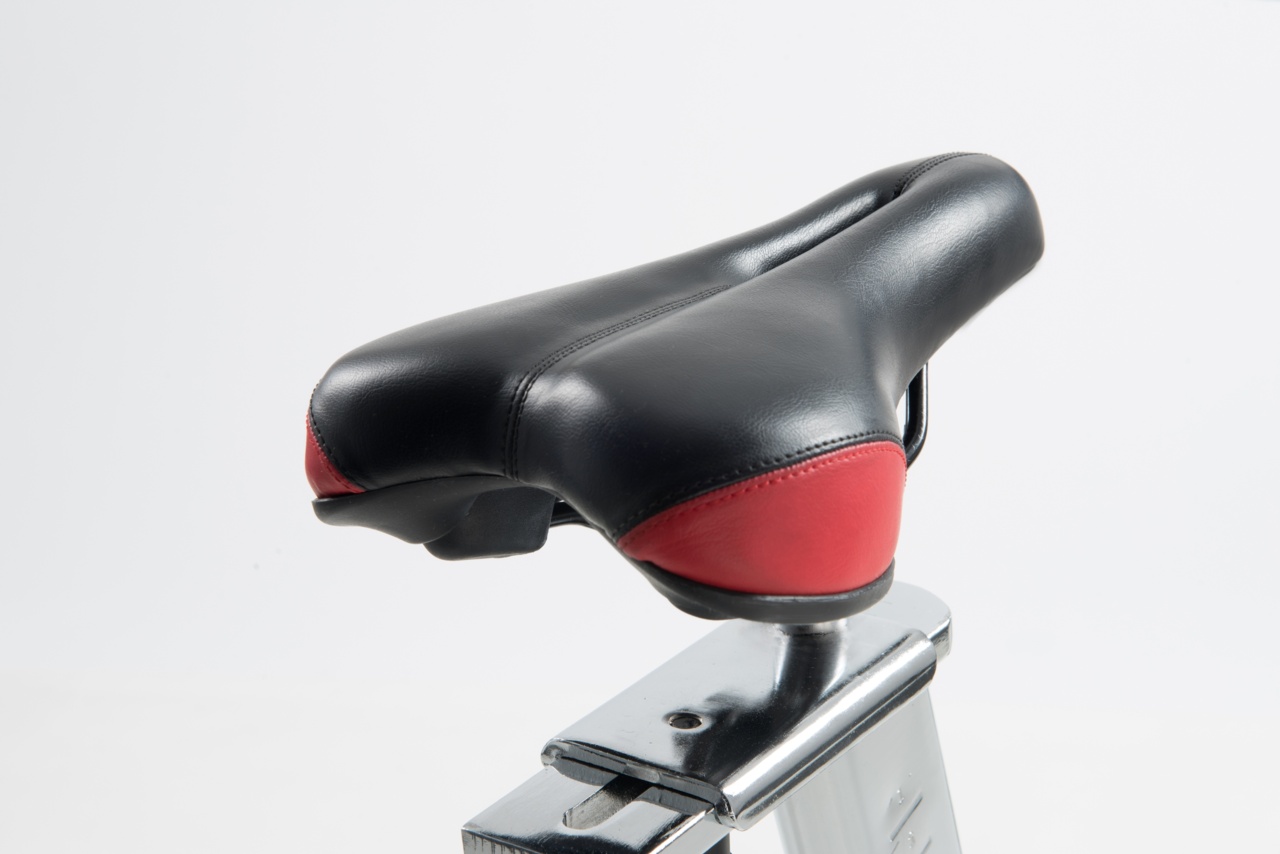

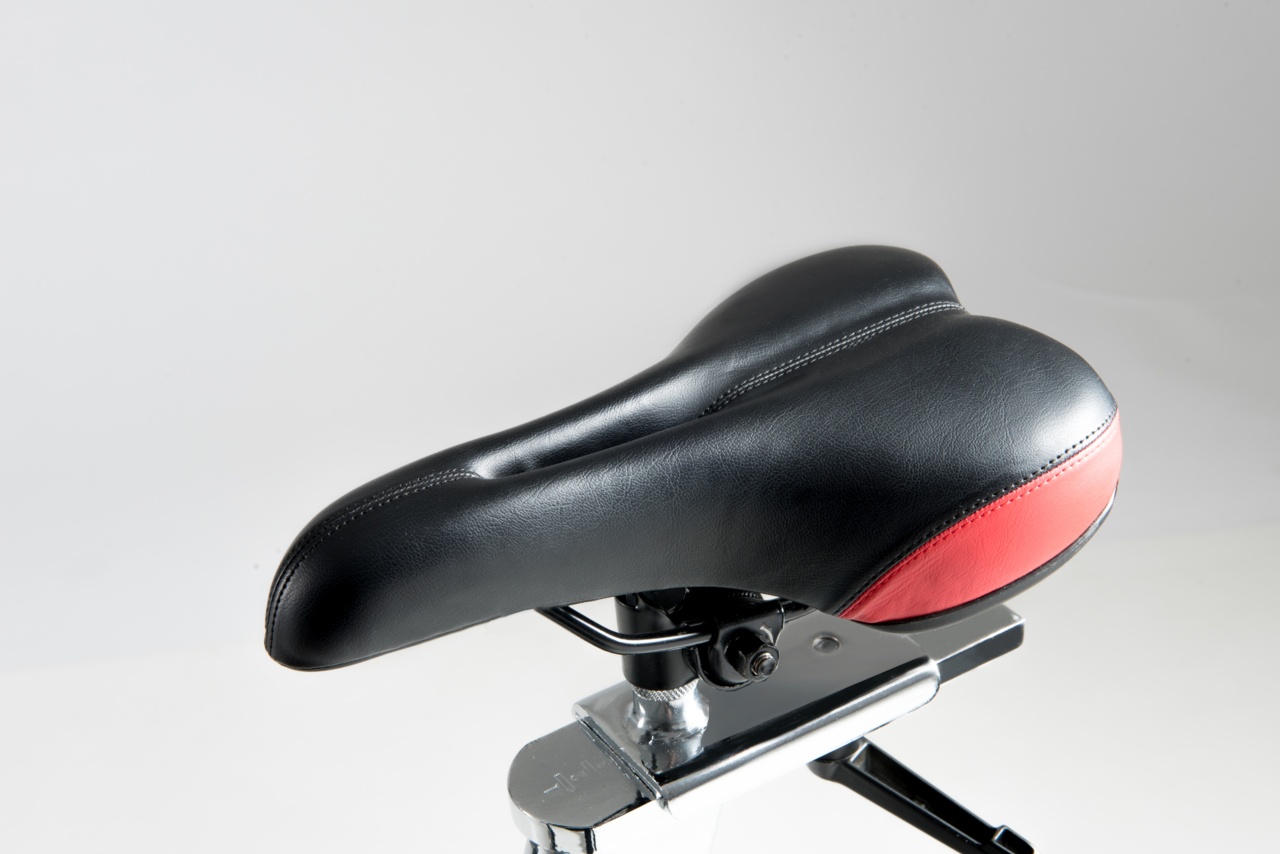

Saddle	two-color with vertical adjustment and micrometric horizontal adjustment
Handlebar
Handlebar	vertical adjustment and micrometric horizontal adjustment with double bottle cage holder
Handlebar height *
Handlebar height *	min. 92 cm, max. 104 cm
Saddle height *

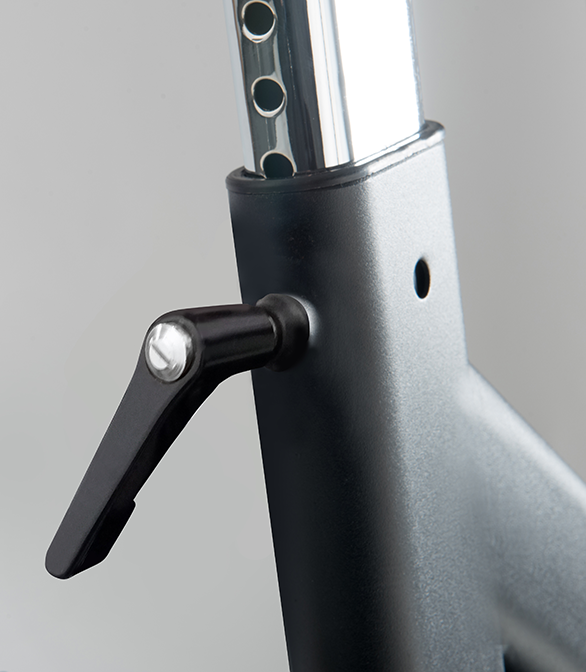

Saddle height *	min. 67.5 cm, max. 86 cm
Handlebar setback *
Handlebar setback *	+/- 8.5 cm
Seat setback *
Seat setback *	min. 55 cm, max. 65 cm
Q Factor
Q Factor	Total: 19.5 cm - Left: 9.1 cm \| Right: 10.3 cm
Adjustment of effort
Adjustment of effort	micrometric manual
Heart rate monitoring
Heart rate monitoring	built-in wireless heart rate monitor receiver - heart rate monitor included
Transport wheels
Transport wheels	yes
Base leveling feet
Base leveling feet	yes
Crank

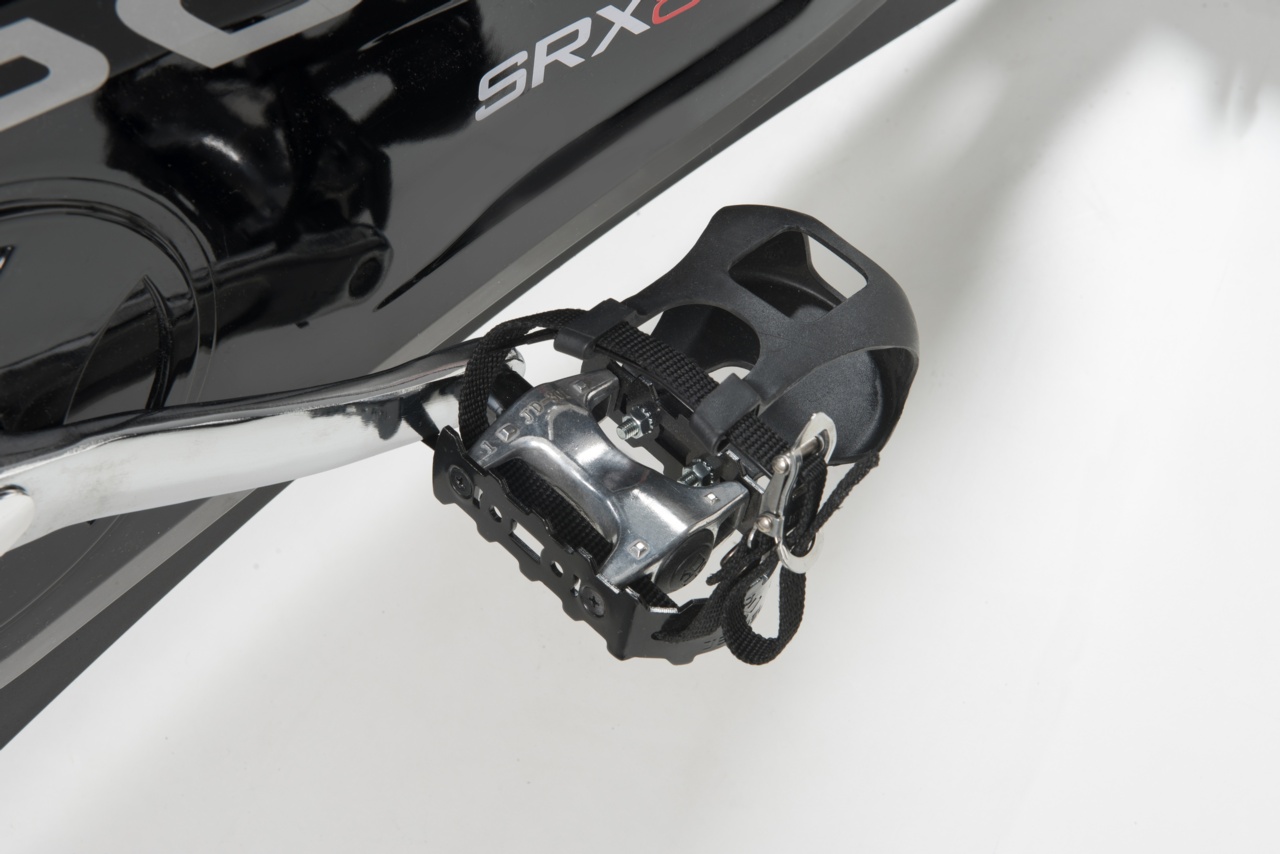

Crank	3 pieces
Frame
Frame	thick steel
Painting
Painting	high-strength powders
Product weight
Product weight	52 kg
Product dimensions
Product dimensions	1340 x 580 x 1230 mm
Packaged product weight
Packaged product weight	55 kg
Packaging dimensions
Packaging dimensions	1150 x 260 x 950 mm
Certifications
Certifications	CE-ROHS-EN957
Product code
Product code	SRX-85

^* Fixed points taken to perform measurements:

Saddle setback > from saddle anchor point to minimum handlebar position.

Handlebar height > from the top edge of the handlebar to the bike's support base (top surface).

Saddle height > Users can check whether the equipment is suitable for them by measuring the distance from their heel to their crotch, bearing in mind that during training, the leg should never be fully extended.

Handlebar setback > delta of the minimum and maximum position of the slide.
