indoor bikes: SRX-80; code SRX-80

KEY POINTS
Belt drive with fixed pinion. Felt buffer braking system. Equipped with safety lever for quick flywheel locking. Flywheel weight 22 kg (balanced). Integrated wireless receiver for heart rate monitor.

Check availability and prices through WEBSTORES and POINTS OF SALE authorized dealers!

The images and data presented in the catalog and on the website's product specifications may differ in some details from the original products

COMPARE

Technical specifications

Transmission
Transmission	belt drive with fixed pinion
Resistance braking system
Resistance braking system	with felt pads. Equipped with a safety lever for quick locking of the flywheel.
Volcanic mass
Volcanic mass	weight 22 kg (balanced)
Maximum user weight
Maximum user weight	140 kg

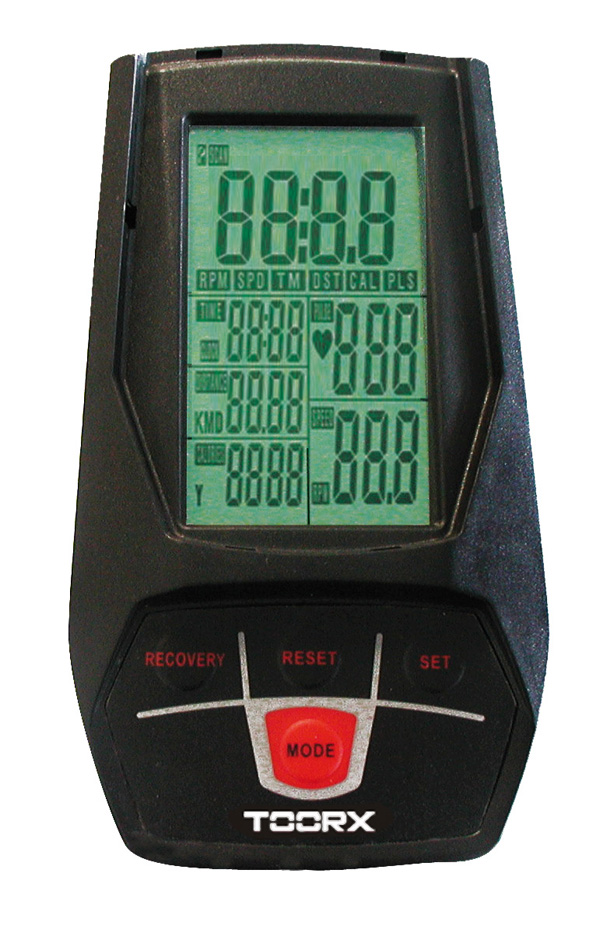

Computer with LCD
Computer with LCD	speed, time, distance, heart rate, calories, RPM, odometer
Saddle
Saddle	two-color with vertical and horizontal adjustment

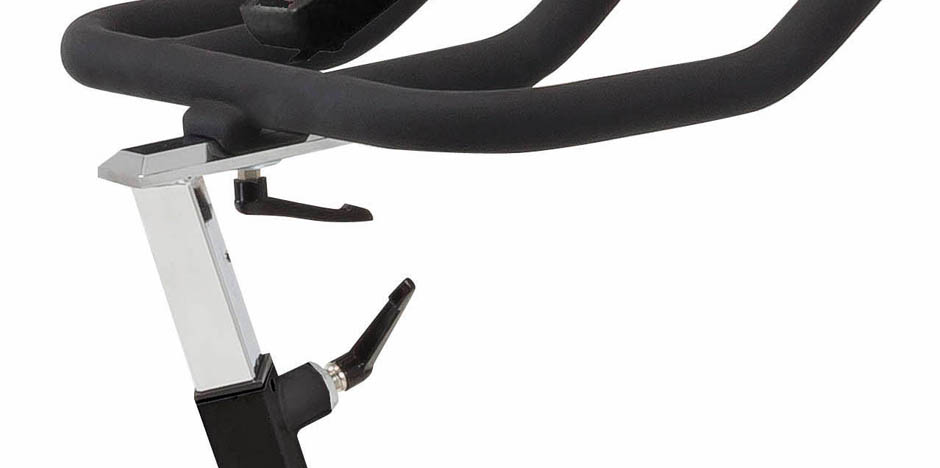

Handlebar
Handlebar	micrometric vertical and horizontal adjustment
Handlebar height *
Handlebar height *	min 91 cm, max 107 cm
Saddle height *
Saddle height *	min. 70.5 cm, max. 90 cm
Handlebar setback *
Handlebar setback *	± 10 cm
Seat setback *
Seat setback *	min. 67.5 cm, max. 74 cm
Q Factor
Q Factor	Total: 20.3 cm. - Right: 10.6 cm. \| Left: 9.7 cm.
Adjustment of effort
Adjustment of effort	micrometric manual
Heart rate monitoring
Heart rate monitoring	Integrated wireless heart rate monitor receiver.
Transport wheels
Transport wheels	Yes
Base leveling feet
Base leveling feet	Yes
Crank
Crank	3 Pieces
Frame
Frame	thick steel
Painting
Painting	high-strength powders
Product weight
Product weight	56 kg
Product dimensions
Product dimensions	1250 x 503 x 1216 mm
Packaged product weight
Packaged product weight	60 kg
Packaging dimensions
Packaging dimensions	1100 x 250 x 870 mm
Certifications
Certifications	CE-ROHS-EN957
Product code
Product code	SRX-80

^* Fixed points taken to perform measurements:

Saddle setback > from saddle anchor point to minimum handlebar position.

Handlebar height > from the top edge of the handlebar to the bike's support base (top surface).

Saddle height > Users can check whether the equipment is suitable for them by measuring the distance from their heel to their crotch, bearing in mind that during training, the leg should never be fully extended.

Handlebar setback > delta of the minimum and maximum position of the slide.
