treadmill
VOYAGER PLUS
code VOYAGER-PLUS
VOYAGER PLUS
  • KEY POINTS
  •  3/4 MOTOR (Peak) DC HP
    Speed 1.0 - 20.0 Km/h with 0.1 km/h increments
     Electric incline 15% (15 levels)
    Control panel with capacitive touch screen technology
     APP READY 3.0. TRX APP GATE 3.0 (optional).
    Compatible with Kinomap, Iconsole+, Zwift
    • kinomap
    • ictraining
    • zwift
Check availability and prices through WEBSTORES and POINTS OF SALE authorized dealers!
The images and data presented in the catalog and on the website's product specifications may differ in some details from the original products
loading ... COMPARE COMPARE NOW

Technical specifications

Motor
Motor3/4 (Peak) HP DC - 3-year warranty
Speed
Speed1.0 - 20.0 Km/h with 0.1 km/h increments
Incline
Inclineelectric 15% on 15 levels
Programs
Programs1 manual, 24 preset, 4 target, 4 user, 4 HRC, Body fat tester
Maximum user weight
Maximum user weight120 kg
Cushioning system
Cushioning system4 elastomers with Soft Tech system
Running deck
Running deck480 x 1410 mm - thickness 1.6 mm
Roller diameter
Roller diameterfront ø46 mm - rear ø46 mm
Product weight
Product weight81 kg
Unfolded dimensions
Unfolded dimensions1920 x 790 x 1390 mm
Folded dimensions
Folded dimensions1140 x 790 x 1650 mm
Packaged product weight
Packaged product weight92 kg
Packaging dimensions
Packaging dimensions1960 x 870 x 380 mm
Certifications
CertificationsCE-ROHS-EN957
Product code
Product codeVOYAGER-PLUS

Console

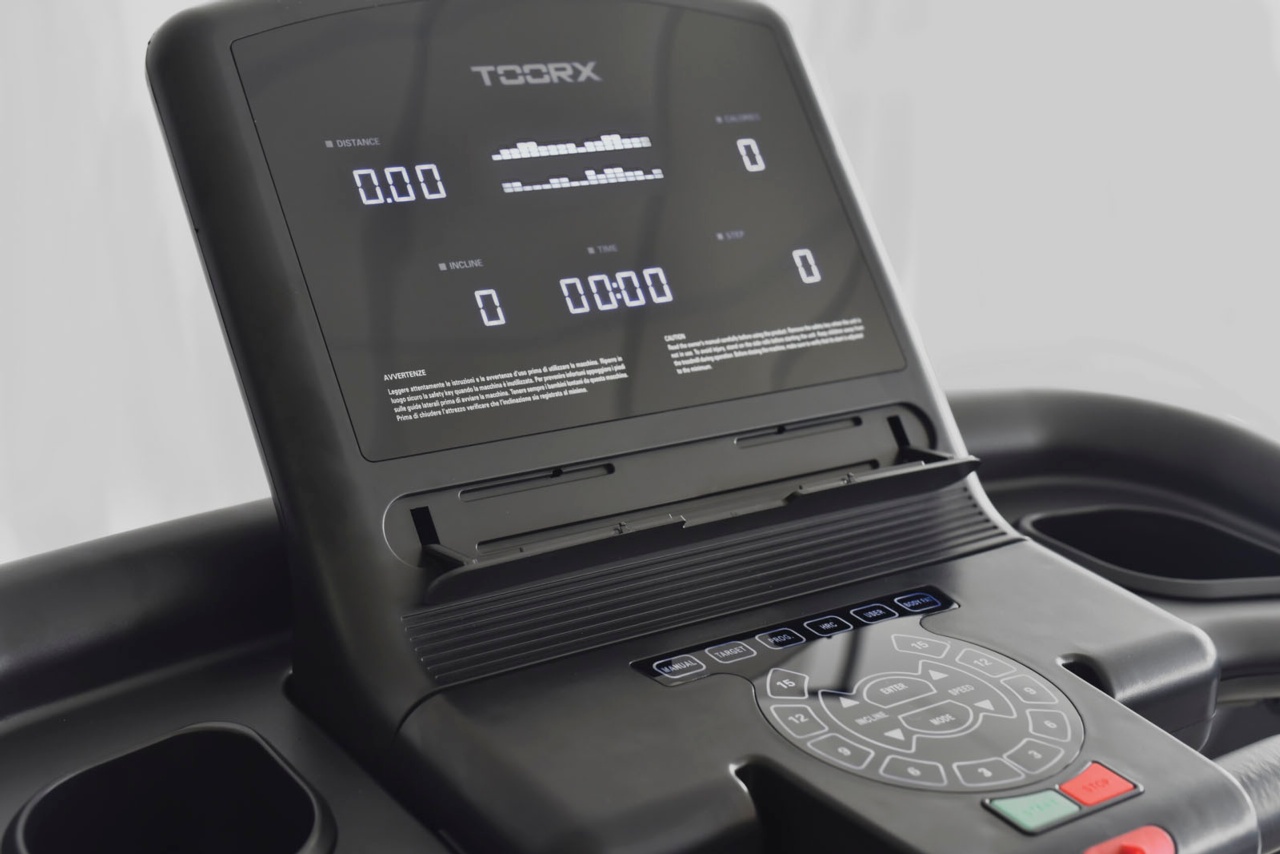

Description of console functions
  • 5 white LED displays + 1 display with white LED graphics

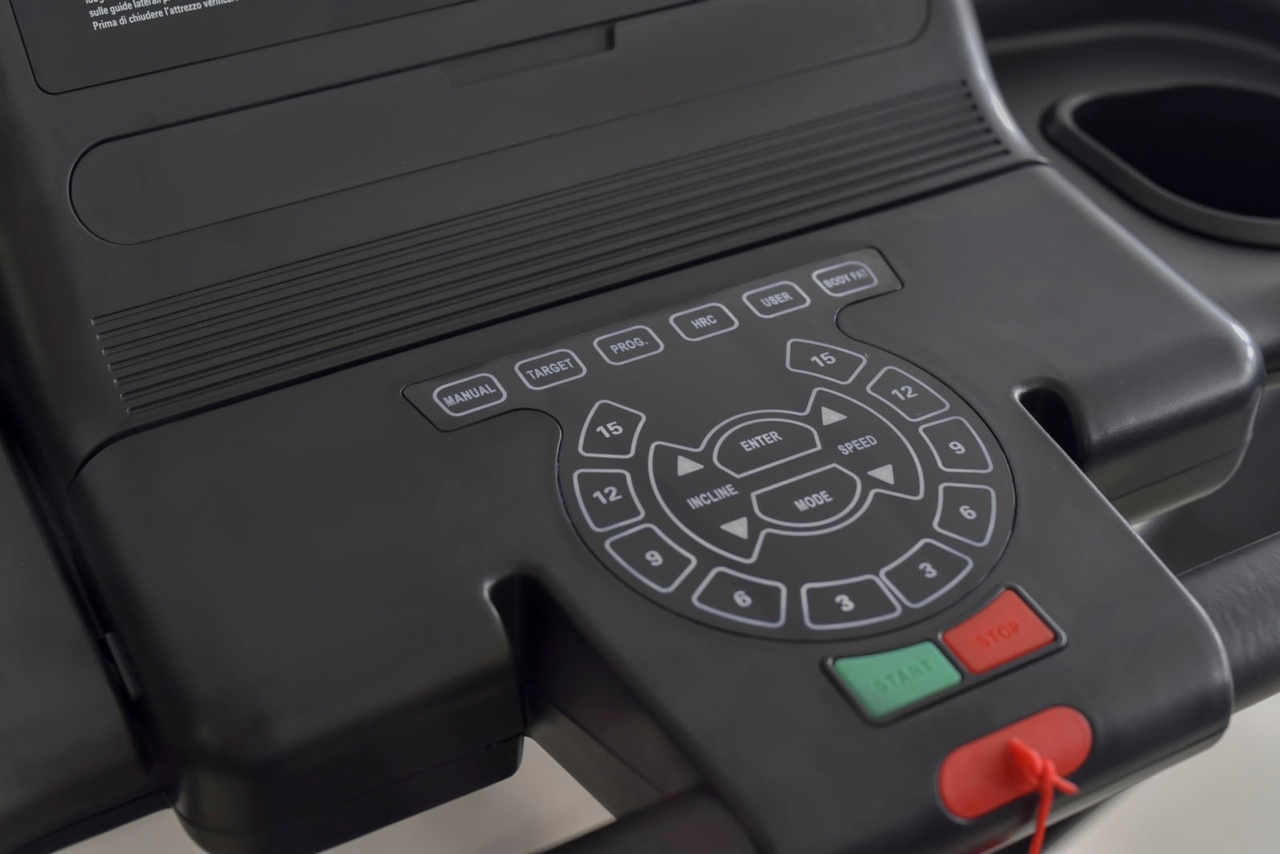

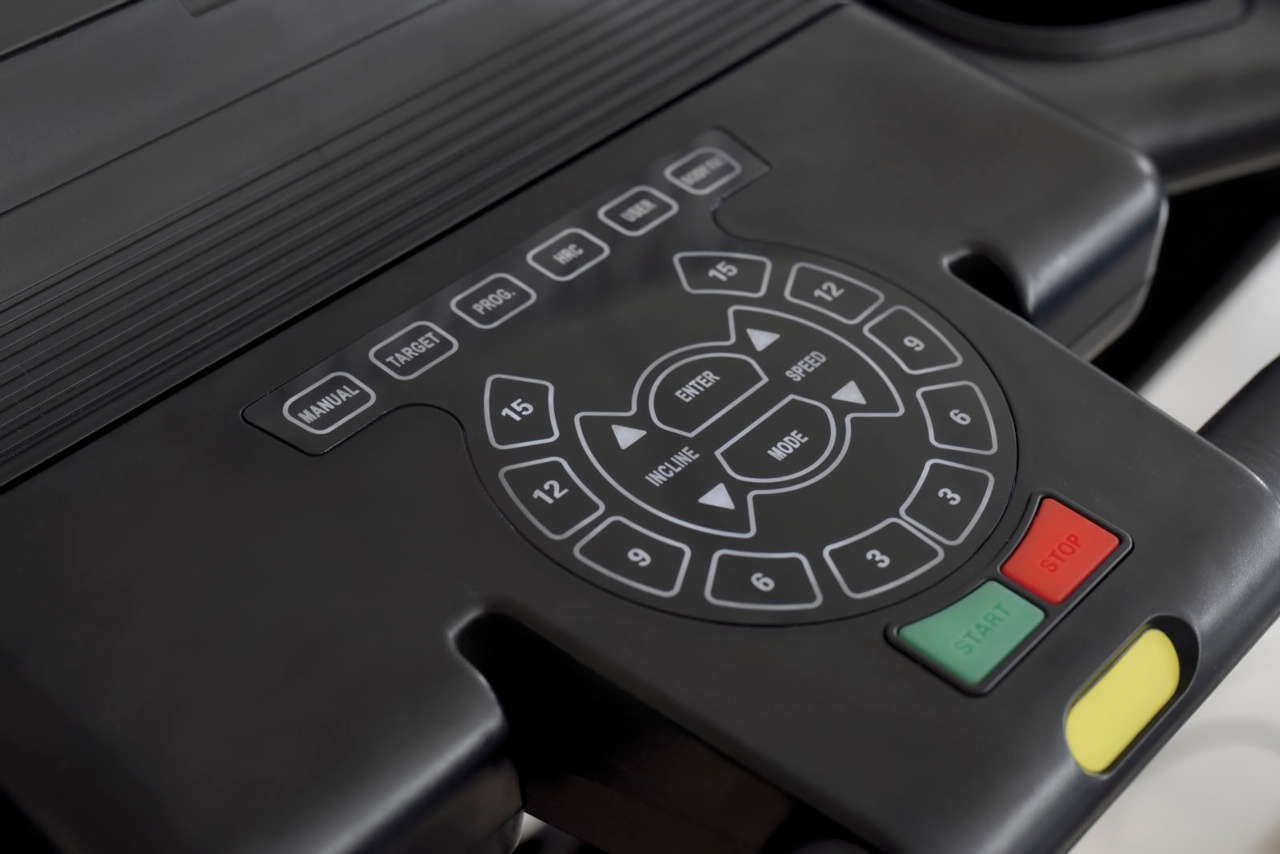

  • Control panel with capacitive touch screen technology
  • Heart rate monitor strap INCLUDED

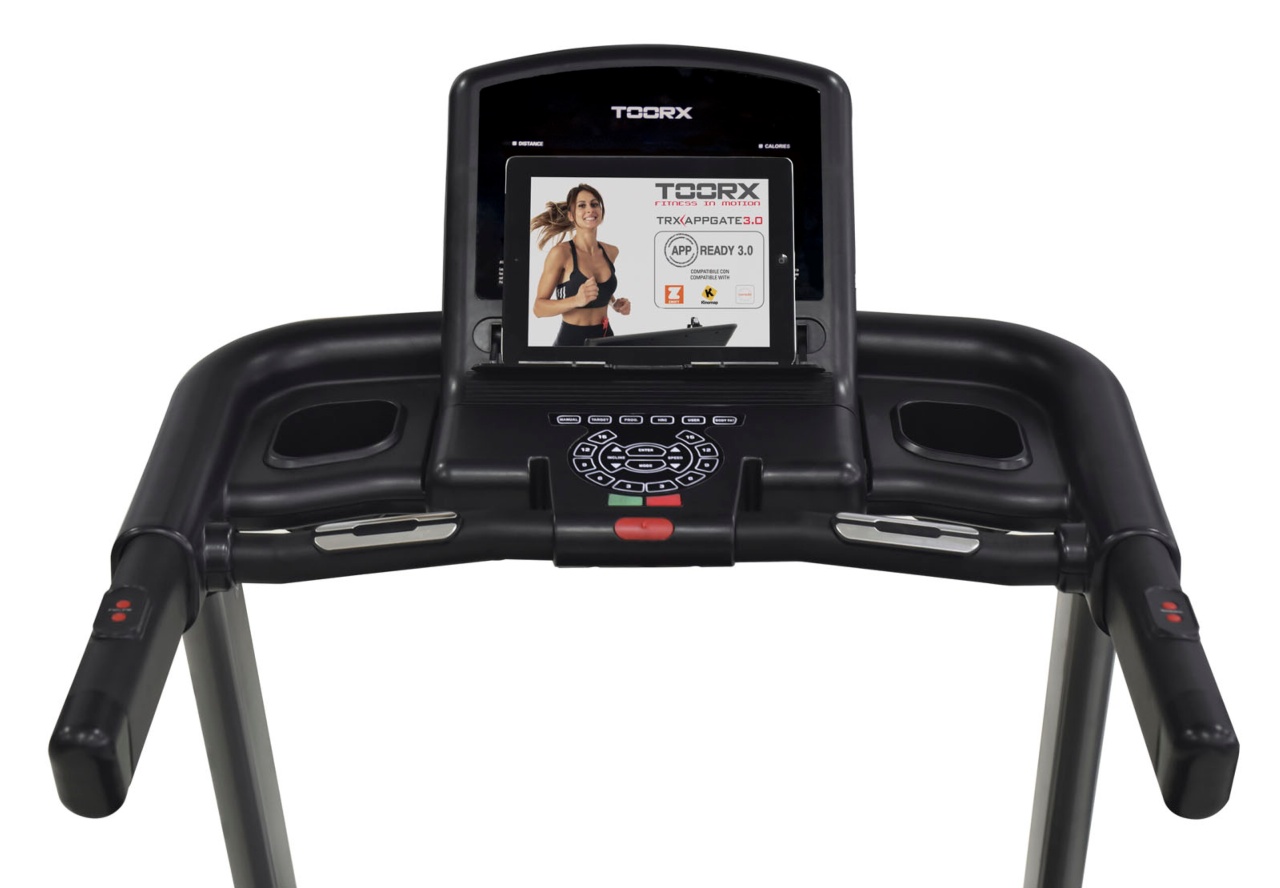

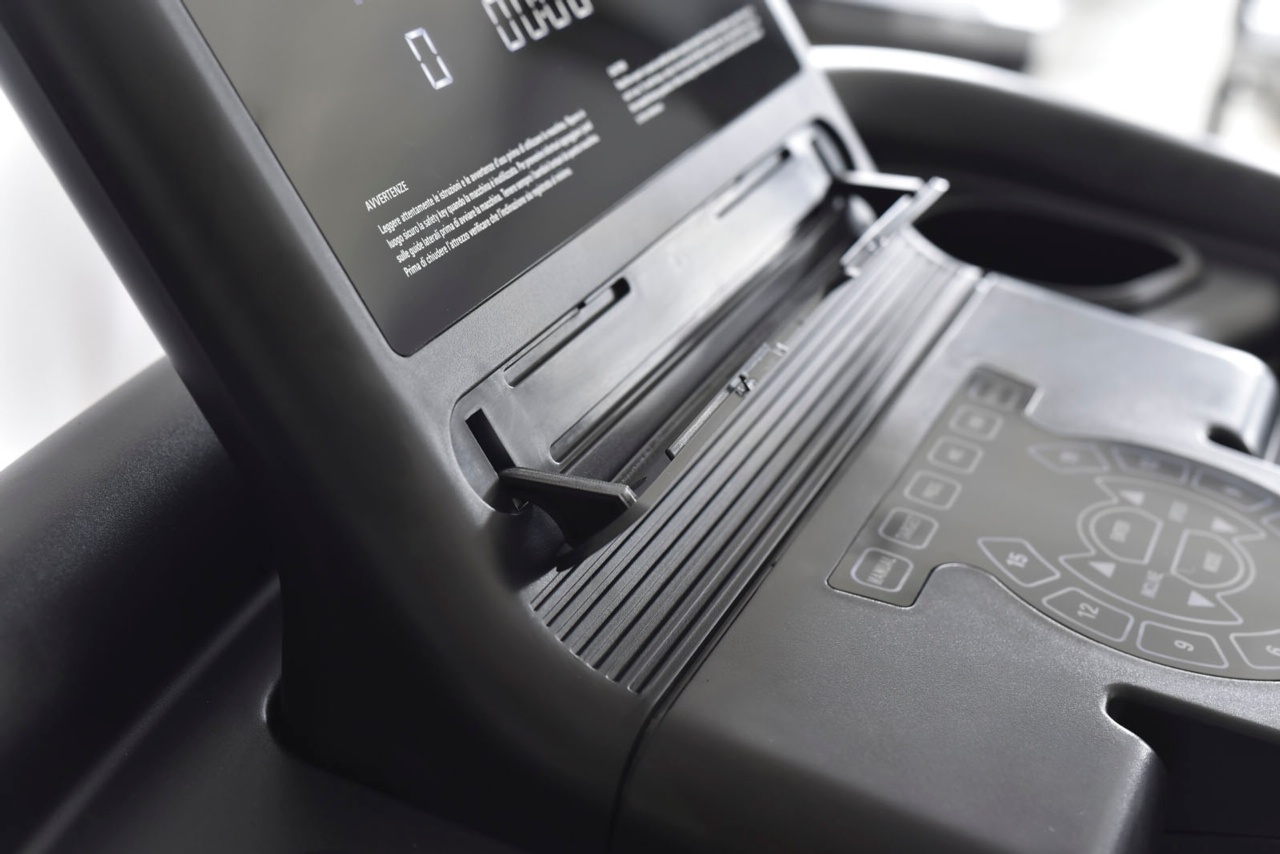

  • Smartphone/tablet holder.
  • Integrated wireless receiver for heart rate monitor strap.

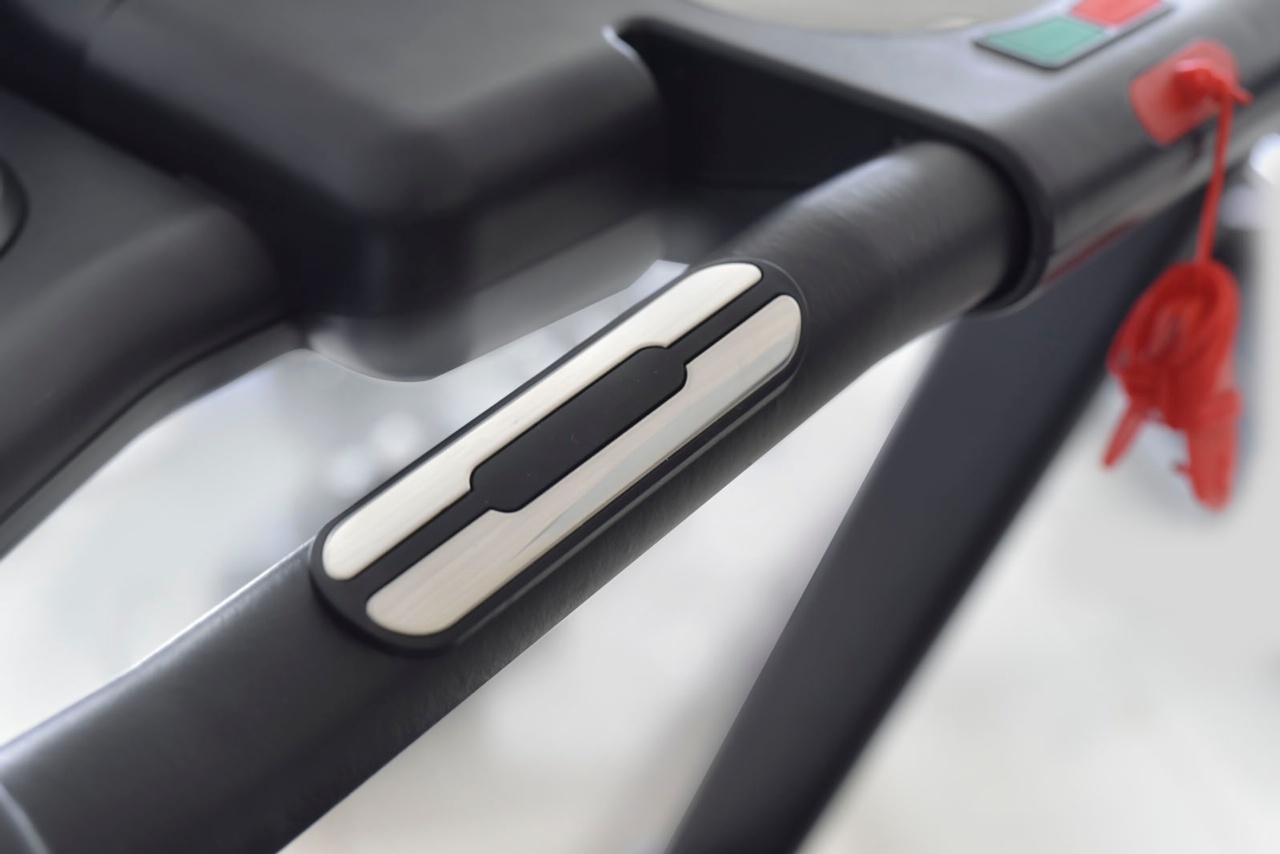

  • hand pulse
  • console with holder for smartphone/tablet

Multimedia features:

  • speakers Bluetooth

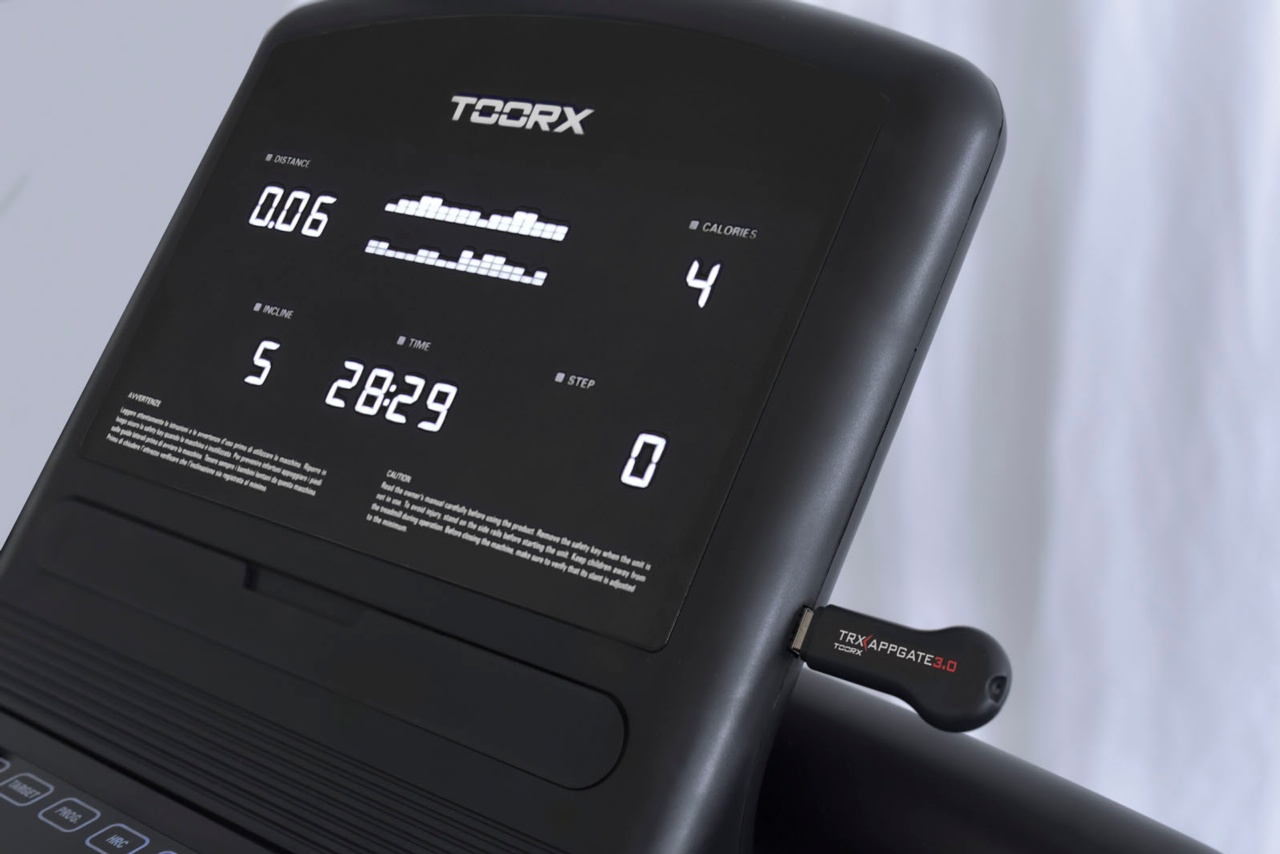

  • APP READY 3.0 - USB input for TRX APP GATE 3.0 (optional).
  • Smart Bluetooth system that enables the use of outdoor training applications. Includes iConsole+ Training App. Compatible with Zwift and Kinomap  (subscriptions not included)
Information provided by the console

speed, tilt, heart rate, distance, time, calorie consumption, steps, pace, current program.

But how much does VOYAGER PLUS consume?

The assessment was performed at varying speeds (1-4-8-12 km/h) and inclinations (maximum and average at 4 km/h), under a consistent load from an 80kg runner. The runner maintained an upright posture, refrained from leaning on the side handrails, and facilitated the walking/running motion. The collected data indicated that power consumption decreased by over 50% when walking at maximum inclination, and by 30% at an average inclination.

Generally, it is observed that the treadmill's power consumption is lower than that of other common household appliances (e.g., microwave ovens, hairdryers).

ModelEngine power1 km/h4 km/h8 km/h12 km/h
VOYAGER PLUS 3 HP DC 50 watts 100 watts 220 watts 350 watts
ModelVOYAGER PLUS
Engine power3 HP DC
1 km/h50 watts
4 km/h100 watts
8 km/h220 watts
12 km/h350 watts
