lifting stations
WLX-70
code WLX-70
WLX-70
  • KEY POINTS
  •  ball bearing sliding
     solid steel bars
     possibility of using weight discs with ø 25 or ø 50 mm holes.
     traction bar included
    (The most suitable multi-purpose bench to complete your workout is the WBX-80)
Check availability and prices through WEBSTORES and POINTS OF SALE authorized dealers!
The images and data presented in the catalog and on the website's product specifications may differ in some details from the original products
loading ... COMPARE COMPARE NOW

Technical specifications

Maximum load capacity
Maximum load capacity300 kg
Features
Features
  • Rocker arm measurement: 1955 mm
  • Diameter of rocker arm disc holder: for cast iron ø 25 mm or ø 50 mm
  • Swing handle diameter: 30 mm
  • Useful internal width of rocker arm:1060 mm
  • Rocker arm heights: from 575 mm to 1855 mm

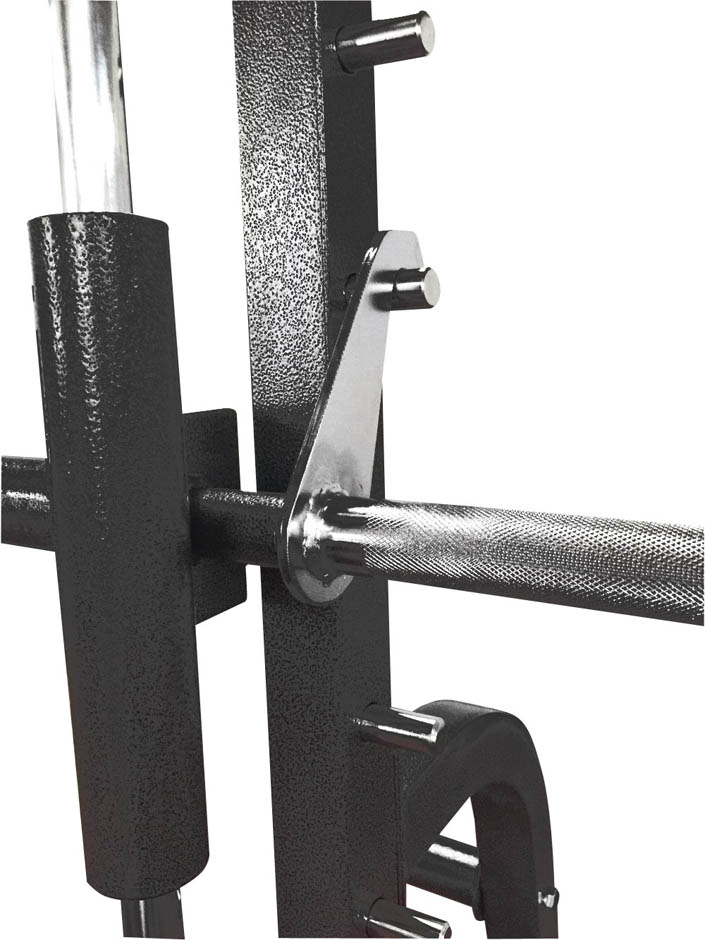

  • Rocker arms mounted on ball bearings for smoother, jerk-free movement, with quick-release safety mechanism
  • Rocker slide guides: solid steel bars, 24 mm diameter

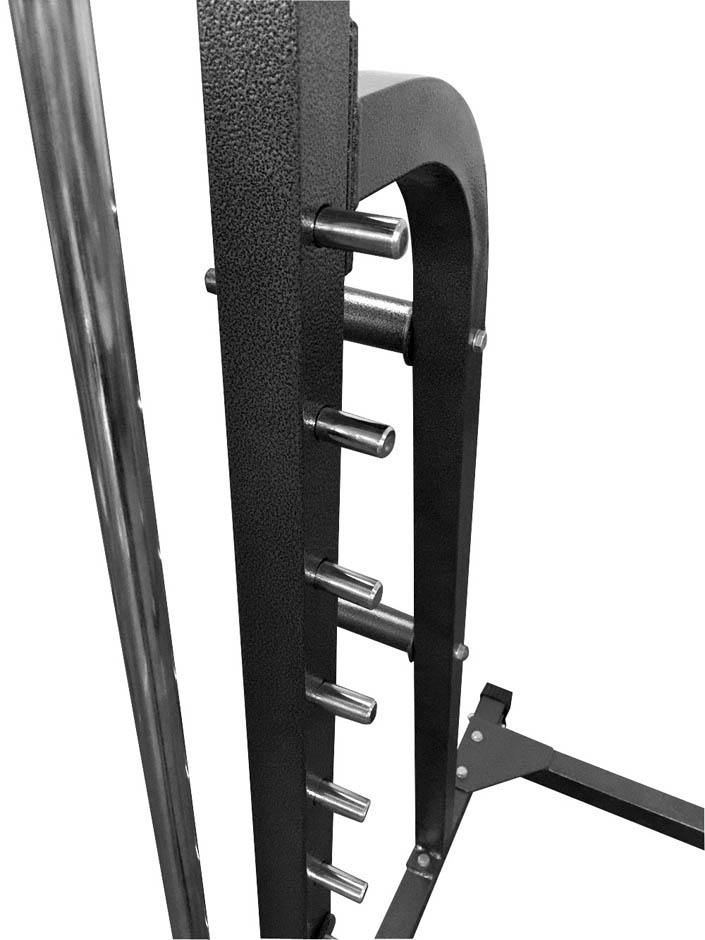

  • Rocker arm safety devices 2 safety devices with hooks to prevent accidental falls and/or crushing of the rocker arm, adjustable to 15 positions with 85 mm increments, heights from 550 mm to 1790 mm
  • Internal rack height/width measurements: 1945 mm / 1120 mm
  • Rear tow bar: height from ground 2075 mm - width 1010 mm - ø 30 mm
  • Equipment:pull-up bar, 4 disc holders for 25 mm or 50 mm cast iron discs, 2 Olympic spring-loaded disc holders (48 mm) included
Frame
Framesquare and rectangular tubular section (50x50x2 mm / 50x75x2 mm) in reinforced steel
Product weight
Product weight87 kg
Product dimensions
Product dimensions1955 x 1225 x 2075 mm
Packaged product weight
Packaged product weight94 kg
Packaging dimensions
Packaging dimensions1995 x 320 x 72 mm + 1415 x 510 x 150 mm
Certifications
CertificationsCE EN ISO 20957-1/957-4
Product code
Product codeWLX-70
