all in one stations
ASX-90
NEW
code ASX-90
ASX-90
  • KEY POINTS
  •  ALL IN ONE dual pulley & row, Smith machine, rack.
     MAXIMUM USER WEIGHT
    120 kg
     MAXIMUM LOADABLE WEIGHT
    135 kg
     RATIO
    1:1 / fly handle - 1:1 / lat pulldown - 1:1 / seated rowing
     BARBELL
    1743 mm, sliding on ball bearings, 2 adjustable safety catches, adjustable to 16 positions (455 - 1805 mm), 90mm pitch. Plate holder diameter ø 50 mm and ø 25 mm
     EQUIPMENT
    Loads ø50 mm and ø25 mm discs. 1 squat bar, 2 J-hooks, pair of barbell safety catches, barbell storage, multi-grip pull-up bar, 4 hooks for elastic bands, 8 ø50 mm disc holders and
    ø25 mm, 12 ø49 mm spring disc catches and 4 ø25 mm. Attachments: ankle strap, double triceps rope, chain, landmine, 2 pull-up handles, lat bar and short straight bar included.

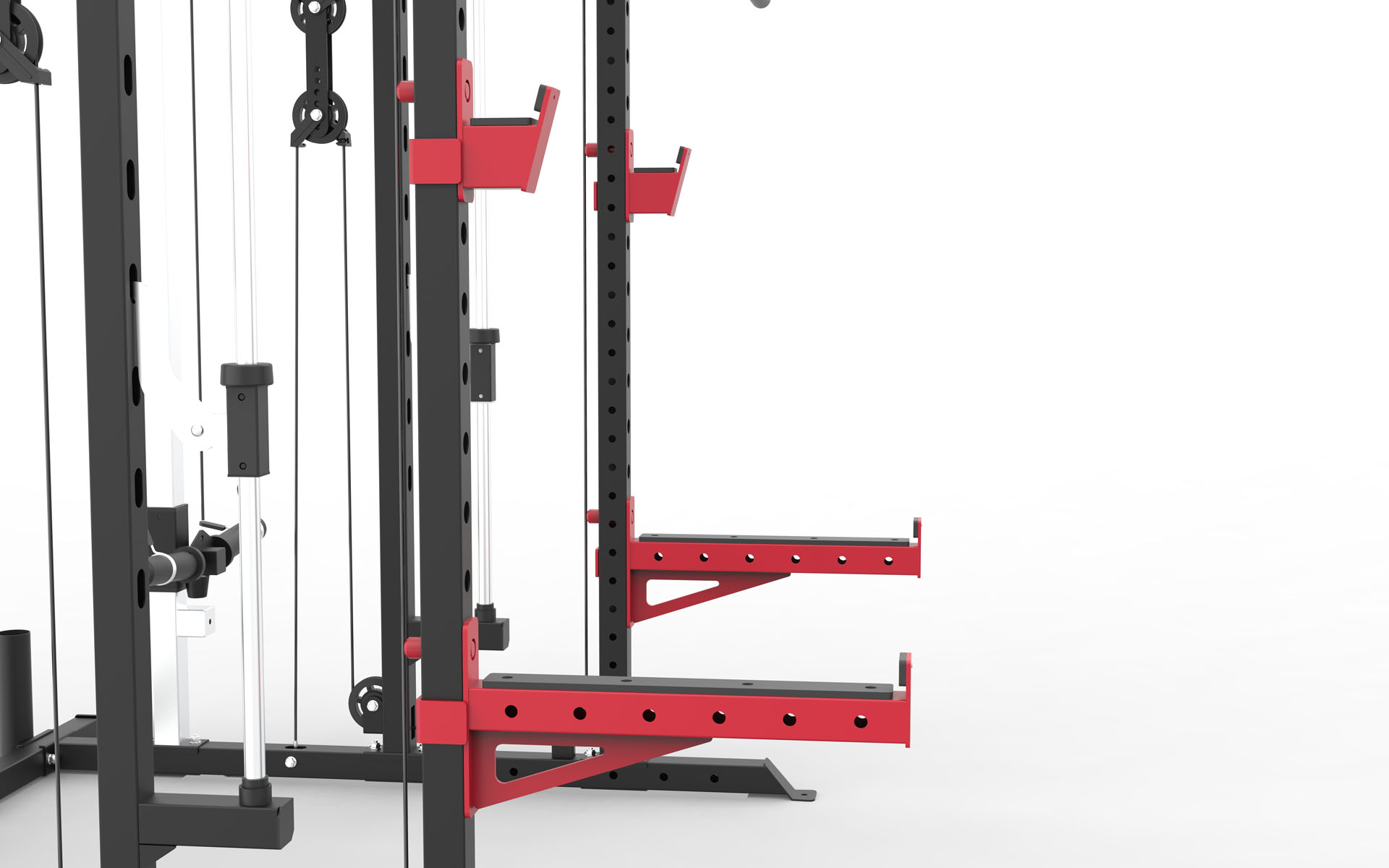

     J-CUP/SAFETY SPOTTER ARMS
    Extra strong, 5 mm thick withUHMW (Ultra High Molecular Weight) protection.
    Adjustable 429-1869 mm on 17 levels, 50 mm center distance

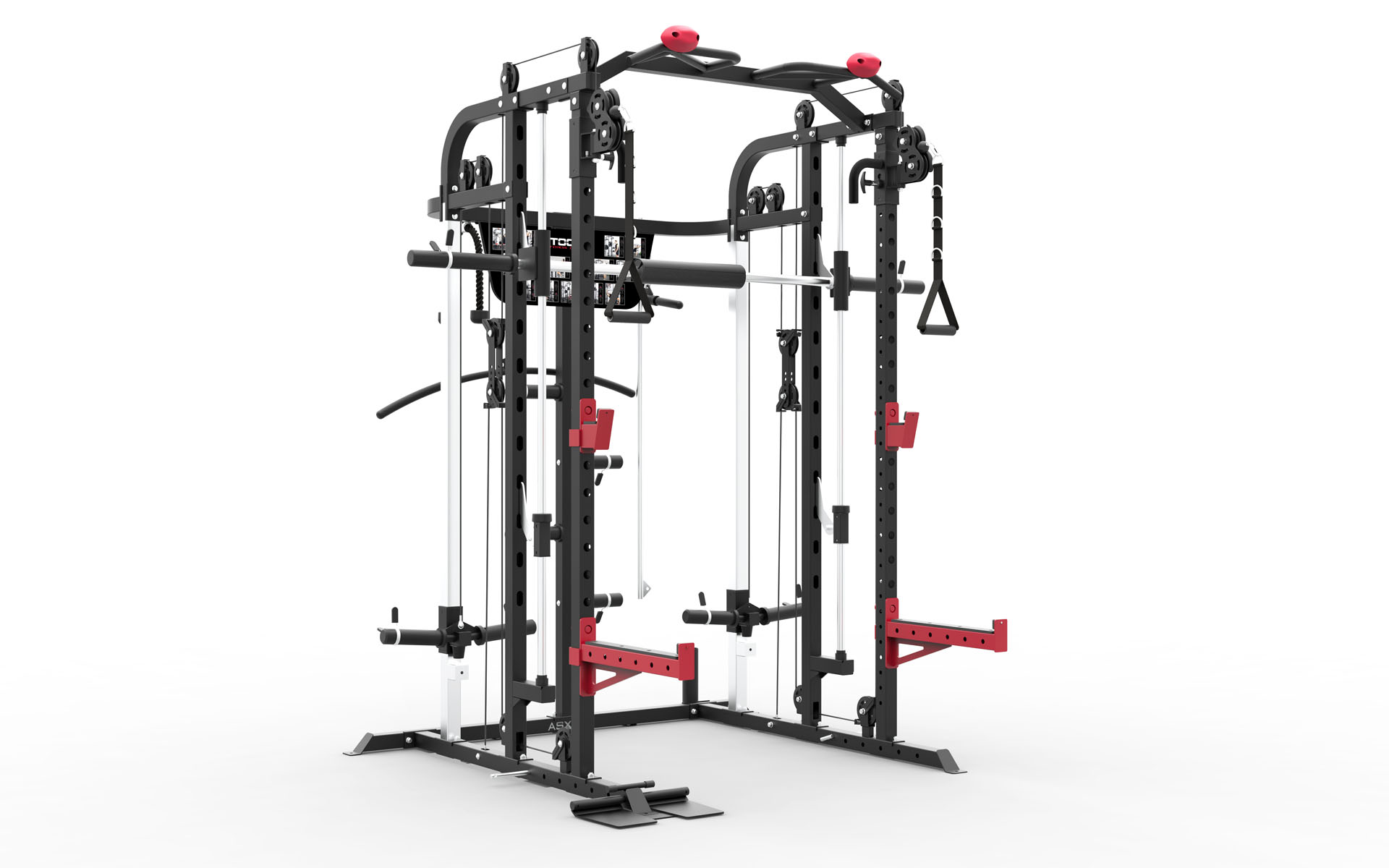

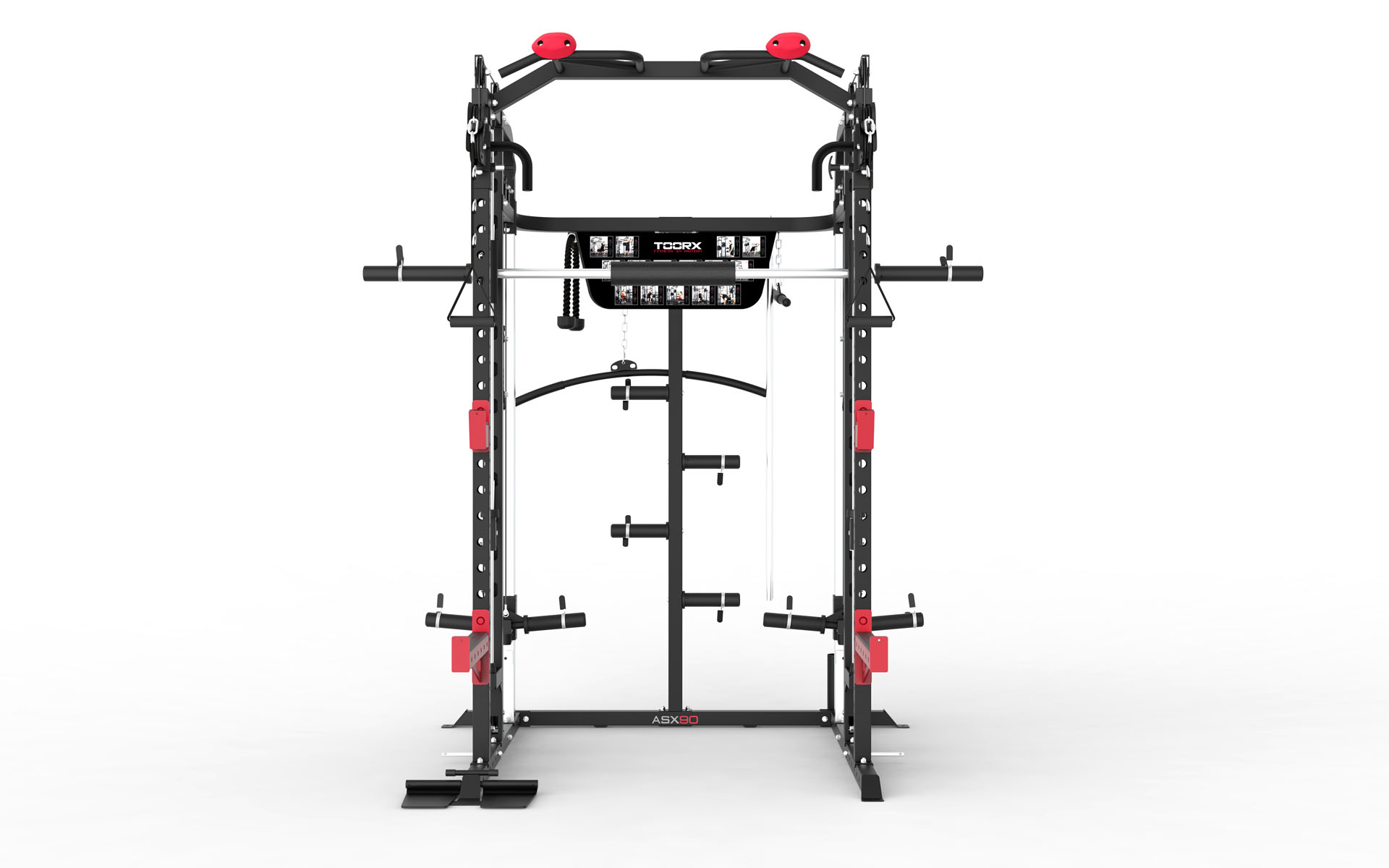

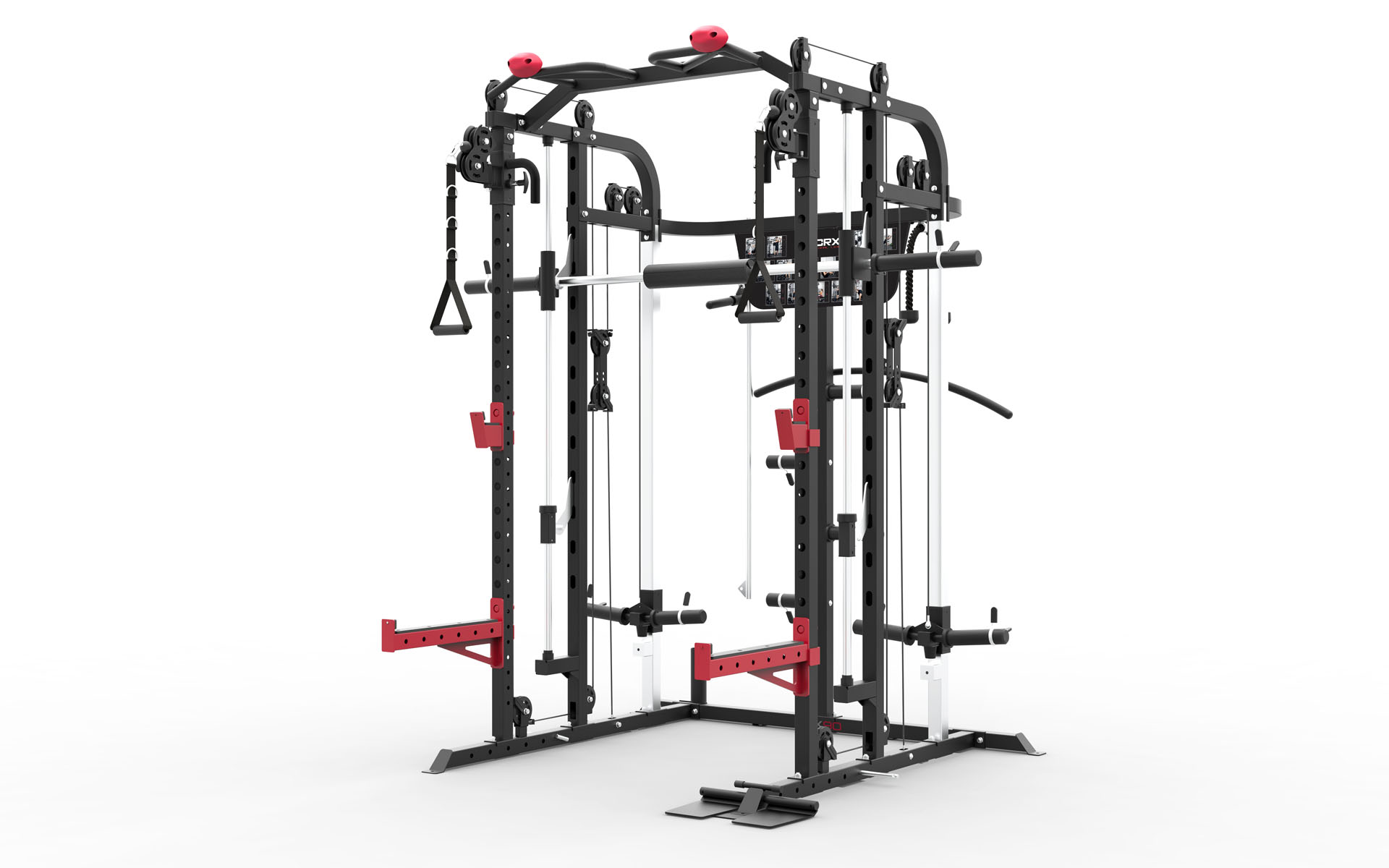

    The ASX 90 isthe entry-level model in Toorx's wide range of "all in one" machines. This versatile 3-in-1 machine combines a dual pulley, a disc-loaded Smith machine, and a fully equipped functional rack in a single machine. The ASX 90 shares the same high-quality construction, functionality, and equipment as its well-known big sisters, which are designed for the vertical and professional markets, offering home users training possibilities that were previously unattainable, at an equally unbeatable price.

Check availability and prices through WEBSTORES and POINTS OF SALE authorized dealers!
The images and data presented in the catalog and on the website's product specifications may differ in some details from the original products
loading ... COMPARE COMPARE NOW

Technical specifications

Maximum user weight
Maximum user weight160 kg
Features
Features
  • J-CUP/SAFETY SPOTTER ARMS Extra strong, 5 mm thick with UHMW (Ultra High Molecular Weight) protection. Adjustable from 429-1869 mm across 17 levels with 50 mm spacing.
  • BARBELL 1743 mm, sliding on ball bearings, 2 adjustable safety catches, adjustable to 16 positions (455 - 1805 mm), 90mm pitch. Plate holder diameter ø 50 mm and ø 25 mm
  • 3-IN-1 EQUIPMENTdual pulley&row, Smith machine, rack. Disc loading system ø50 mm and ø25 mm. 1 Squat bar, 2 J-hooks, pair of safety barbell stops, barbell storage, pull-up bar
    multi-grip, 4 hooks for elastic bands, 8 ø50 mm and ø25 mm disc holders, 12 ø49 mm and 4 ø25 mm spring disc holders. Attachments: ankle strap, double triceps rope, chain, landmine, 2 pull-up handles, lat bar and short straight bar included
  • RATIO: 1:1 / fly handle - 1:1 / lat pulldown - 1:1 / seated rowing
Frame
Framemade of 50x50 mm and 60x60 mm square steel sections
Product weight
Product weight127 kg
Product dimensions
Product dimensions1995 × 1630 × 2220 mm
Packaged product weight
Packaged product weight137 kg
Packaging dimensions
Packaging dimensions2140x430x130 + 1830x430x190 + 1280x480x250 mm
Certifications
CertificationsCE-EN ISO 20957-1/957-4
Product code
Product codeASX-90
EAN
EAN8029975810737
